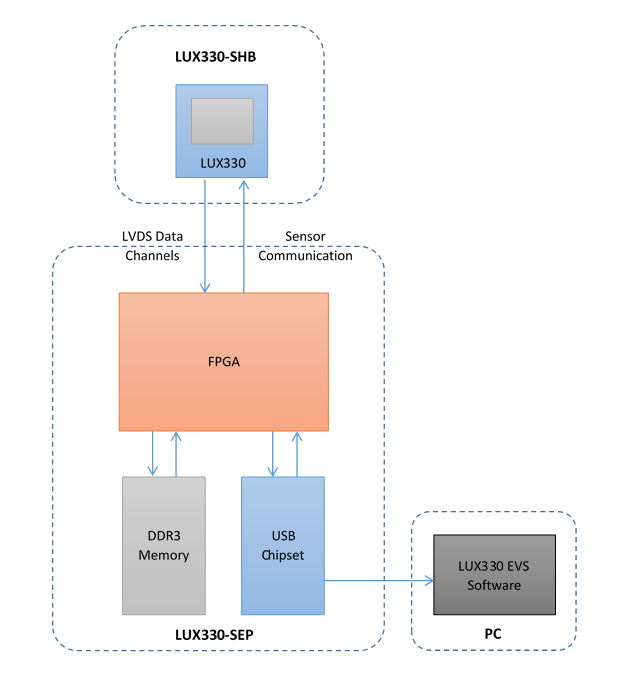

| The LUXIMATM LUX330-EVS enables the user to evaluate the performance of the LUX330 Sensor. The LUX330 Sensor is a Global Shutter CMOS Digital Sensor with 0.33 Megapixel (640 × 512) @ 4,168 FPS. The LUX330-EVS consists of the LUX330-SEP, a Sensor Evaluation Platform, and the LUX330-SHB, a Sensor Headboard. |
|
Main features of LUX330-SHB
- Ultra-small 38.1mm x 38.1mm sensor head board footprint
- 640 × 512 pixels @ 4,168 FPS 2/3” Global Shutter CMOS Sensor
- On-Board drivers for buffering reference voltages to the LUX330 Sensor
- Two small connectors for data output, register programming and voltage references
- Lens Mount support CS-mount and C-mount lenses with CS to C mount adapter
- 2/3" C-mount Lens for the Sensor Head Board
- On-board FPGA to receive 16-channel LVDS data @ 1Gbps/channel
- 2GB DDR3 memory to store consecutive image frames from the LUX330-SHB
- On-board USB chipset for USB 2.0 Interface to PC
- Sensor Control Software for image capture, playback, and sensor communication
- USB cable and DC 5V Power Supply Included
