LUX1310S Evaluation System
1280 x 1024 pixels @ 267 FPS 2/3" Global Shutter CMOS Sensor

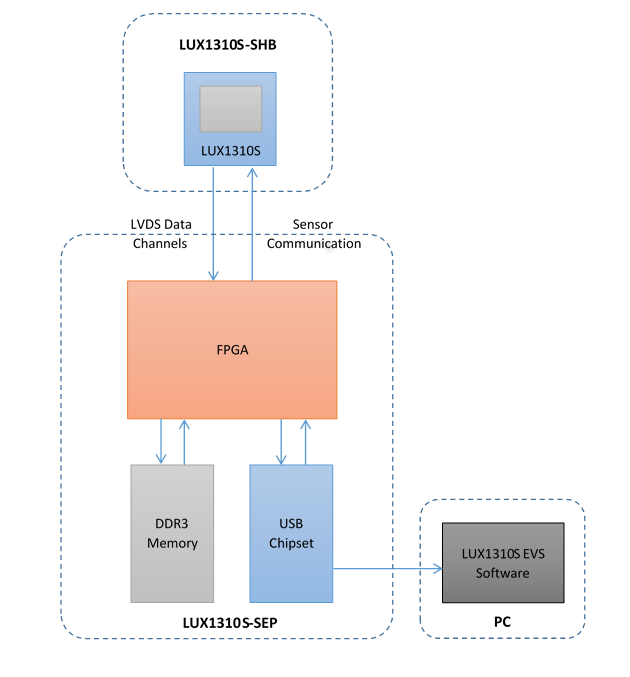

The LUXIMA™ LUX1310S-EVS enables the user to evaluate the performance of the LUX1310S Sensor. The LUX1310S Sensor is a Global Shutter CMOS Digital Sensor with 1.3 Megapixel (1280 × 1024) @ 267 FPS. The LUX1310S-EVS consists of the LUX1310S-SEP, a Sensor Evaluation Platform, and the LUX1310S-SHB, a Sensor Headboard.
For more information on the EVS, please email us at: info@luxima.com
specifications
Main features of LUX1310S-SHB
Ultra-small 38.1mm x 38.1mm sensor head board footprint
1280 x 1024 pixels @ 267 FPS 2/3" Global Shutter CMOS Sensor
On-Board drivers for buffering reference voltages to the LUX1310S Sensor
Two small connectors for data output, register programming and voltage references
Lens Mount support CS-mount and C-mount lenses with CS to C mount adapter
2/3" C-mount Lens for the Sensor Head Board
Main features of LUX1310S-SHB
Main features of LUX1310S-SEP
Main features of LUX1310S-SEP
On-board FPGA to receive 16-channel LVDS data @ 1Gbps/channel
2GB DDR3 memory to store consecutive image frames from the LUX1310S-SHB
On-board USB chipset for USB 2.0 Interface to PC
Sensor Control Software for image capture, playback, and sensor communication
USB cable and DC 5V Power Supply Included
