LUX2100 Evaluation System
1920 × 1080 pixels @ 1,000 FPS 4/3” Global Shutter CMOS Sensor

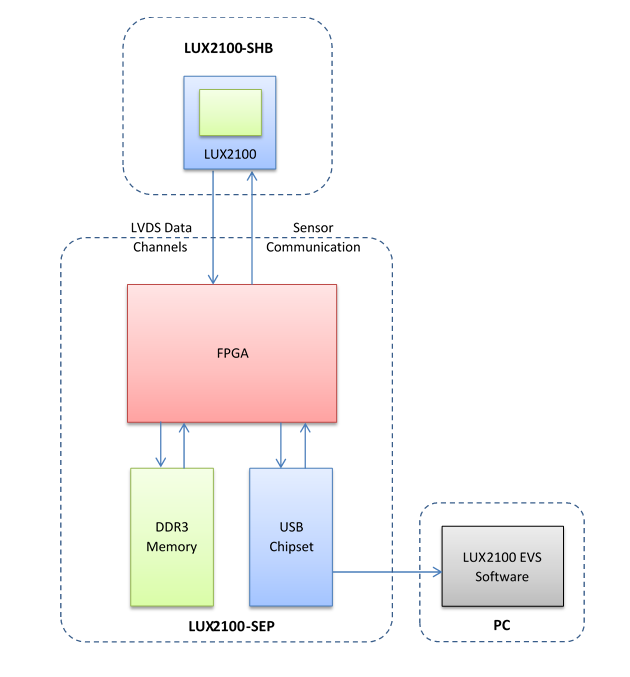

The LUXIMA™ LUX2100-EVS enables the user to evaluate the performance of the LUX2100 Sensor. The LUX2100 Sensor is a Global Shutter CMOS Digital Sensor with 2.1 Megapixel (1920 × 1080) @ 1,000 FPS. The LUX2100-EVS consists of the LUX2100-SEP, a Sensor Evaluation Platform, and the LUX2100-SHB, a Sensor Headboard.
For more information on the EVS, please email us at: info@luxima.com
specifications
Main features of LUX2100-SHB
Small 52.0mm × 52.0mm Sensor Headboard footprint
1920 × 1080 pixels @ 1,000 FPS 4/3” Global Shutter CMOS Sensor
On-Board drivers for buffering reference voltages to the LUX2100 Sensor
Two connectors for data output, register programming and voltage references
Lens Mount support CS-mount and C-mount lenses with CS to C mount adapter
Optional 4/3” C-mount Lens for the Sensor Head Board can be purchased
Main features of LUX2100-SHB
Main features of LUX2100-SEP
Main features of LUX2100-SEP
On-board FPGA to receive 32-channel LVDS data @ 900Mbps/channel
2GB DDR3 memory to store consecutive image frames from the LUX2100-SHB
On-board USB chipset for USB 2.0 Interface to PC
Sensor Control Software for image capture, playback, and sensor communication
USB cable and DC 5V Power Supply Included
